Mother class that implements the main feautures of a functional parameterisation of non-perturbative functions. More...

#include <parameterisation.h>

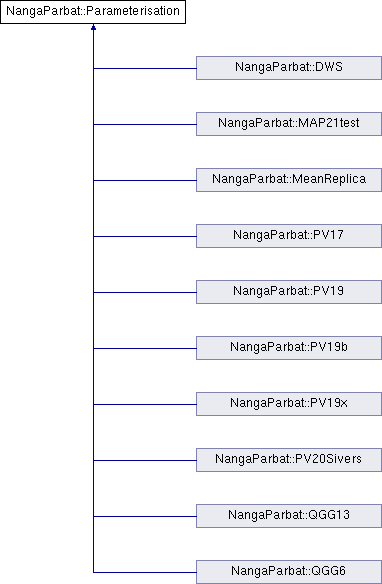

Inheritance diagram for NangaParbat::Parameterisation:

Public Member Functions
	Parameterisation (std::string const &name="", int const &nfuncs=0, std::vector< double > pars={}, bool const &anders=false)
	The "Parameterisation" constructor. More...

virtual	~Parameterisation ()
	The "Parameterisation" destructor. More...

virtual void	SetParameters (std::vector< double > const &pars)
	Function that sets the free parameters of the parameterisation. More...

virtual double	Evaluate (double const &x, double const &b, double const &zeta, int const &ifunc) const
	Virtual function that returns the value of one of the functions. More...

virtual void	EvaluateOnGrid ()

std::function< double(double const &, double const &, double const &, int const &)>	Function () const
	Function that returns the parametrisation in the form of a std::function. More...

virtual double	Derive (double const &x, double const &b, double const &zeta, int const &ifunc, int const &ipar) const
	Virtual function that returns the value of the derivative of one of the functions. More...

virtual void	DeriveOnGrid ()

std::function< double(double const &, double const &, double const &, int const &, int const &)>	Derivative () const
	Function that returns the derivative of the parametrisation in the form of a std::function. More...

virtual std::string	LatexFormula () const
	Virtual function that returns a string with the formula of the non-perturbative function(s) in LaTex format. More...

virtual std::vector< std::string >	GetParameterNames () const
	Virtual function that returns a vector of strings containing the names of the parameters in LaTex format. More...

virtual std::string	GetDescription () const
	Virtual function that returns a short description of the parametrisation. More...

virtual std::function< std::map< int, double >(double const &, double const &)>	LHAPDF_Function () const

virtual std::function< std::map< int, double >(double const &, double const &)>	LHAPDF_Derivative (int) const

virtual std::function< apfel::Set< apfel::Distribution >(double const &)>	DistributionFunction () const

virtual std::function< apfel::Set< apfel::Distribution >(double const &)>	DistributionDerivative (int) const

Getters
Functions to retrieve the feauture of the parameterisation
std::string	GetName () const

int	GetNumberOfFunctions () const

virtual std::vector< double >	GetParameters () const

virtual int	GetParameterNumber () const

bool	HasGradient () const

Protected Attributes
std::string	_name
	Name of the parameterisation. More...

int	_nfuncs
	Number of output functions. More...

std::vector< double >	_pars
	The vector of free parameters. More...

bool	_anders
	Whether the parametersation provides analytic derivatives. More...

Detailed Description

Mother class that implements the main feautures of a functional parameterisation of non-perturbative functions.

Examples: ComputeMeanReplica.cc, PlotTMDs.cc, and RunFit.cc.

Constructor & Destructor Documentation

◆ Parameterisation()

NangaParbat::Parameterisation::Parameterisation	(	std::string const &	name = `""`,
		int const &	nfuncs = `0`,
		std::vector< double >	pars = `{}`,
		bool const &	anders = `false`
	)

The "Parameterisation" constructor.

Parameters

name	name of the parameterisation object (default: empty string)
nfuncs	number of parametric functions (default: 0)
pars	vector of parameters (default: empty vector)
anders	whether analytic derivatives are provided

◆ ~Parameterisation()

virtual NangaParbat::Parameterisation::~Parameterisation ( )

inlinevirtual

The "Parameterisation" destructor.

Member Function Documentation

◆ Derivative()

std::function< double(double const &, double const &, double const &, int const &, int const &)> NangaParbat::Parameterisation::Derivative ( ) const

Function that returns the derivative of the parametrisation in the form of a std::function.

◆ Derive()

virtual double NangaParbat::Parameterisation::Derive	(	double const &	x,
		double const &	b,
		double const &	zeta,
		int const &	ifunc,
		int const &	ipar
	)		const

inlinevirtual

Virtual function that returns the value of the derivative of one of the functions.

Parameters

x	momentum fraction
b	impact parameter
zeta	rapidity scale
ifunc	index of the function;
ipar	index of the parameter

Returns: it returns the value of the derivative w.r.t. the ipar-th parameter of the ifunc-th function at (x, b, zeta;)

Reimplemented in NangaParbat::DWS, and NangaParbat::PV19x.

◆ DeriveOnGrid()

virtual void NangaParbat::Parameterisation::DeriveOnGrid ( )

inlinevirtual

◆ DistributionDerivative()

virtual std::function< apfel::Set< apfel::Distribution >(double const &)> NangaParbat::Parameterisation::DistributionDerivative ( int ) const

inlinevirtual

◆ DistributionFunction()

virtual std::function< apfel::Set< apfel::Distribution >(double const &)> NangaParbat::Parameterisation::DistributionFunction ( ) const

inlinevirtual

◆ Evaluate()

virtual double NangaParbat::Parameterisation::Evaluate	(	double const &	x,
		double const &	b,
		double const &	zeta,
		int const &	ifunc
	)		const

inlinevirtual

Virtual function that returns the value of one of the functions.

Parameters

x	momentum fraction
b	impact parameter
zeta	rapidity scale ζ
ifunc	index of the function

Returns: it returns the value of the ifunc-th function at (x, b, ζ)

Reimplemented in NangaParbat::DWS, NangaParbat::MAP21test, NangaParbat::PV17, NangaParbat::PV19, NangaParbat::PV19b, NangaParbat::PV19x, NangaParbat::PV20Sivers, NangaParbat::QGG13, NangaParbat::QGG6, and NangaParbat::MeanReplica.

Examples: PlotTMDs.cc.

◆ EvaluateOnGrid()

virtual void NangaParbat::Parameterisation::EvaluateOnGrid ( )

inlinevirtual

◆ Function()

std::function< double(double const &, double const &, double const &, int const &)> NangaParbat::Parameterisation::Function ( ) const

Function that returns the parametrisation in the form of a std::function.

Examples: RunFit.cc.

◆ GetDescription()

virtual std::string NangaParbat::Parameterisation::GetDescription ( ) const

inlinevirtual

Virtual function that returns a short description of the parametrisation.

Reimplemented in NangaParbat::DWS, NangaParbat::MAP21test, NangaParbat::PV17, NangaParbat::PV19, NangaParbat::PV19b, NangaParbat::PV19x, NangaParbat::PV20Sivers, NangaParbat::QGG13, and NangaParbat::QGG6.

◆ GetName()

std::string NangaParbat::Parameterisation::GetName ( ) const

inline

◆ GetNumberOfFunctions()

int NangaParbat::Parameterisation::GetNumberOfFunctions ( ) const

inline

◆ GetParameterNames()

virtual std::vector< std::string > NangaParbat::Parameterisation::GetParameterNames ( ) const

inlinevirtual

Virtual function that returns a vector of strings containing the names of the parameters in LaTex format.

Reimplemented in NangaParbat::DWS, NangaParbat::MAP21test, NangaParbat::MeanReplica, NangaParbat::PV17, NangaParbat::PV19, NangaParbat::PV19b, NangaParbat::PV19x, NangaParbat::PV20Sivers, NangaParbat::QGG13, and NangaParbat::QGG6.

◆ GetParameterNumber()

virtual int NangaParbat::Parameterisation::GetParameterNumber ( ) const

inlinevirtual

◆ GetParameters()

virtual std::vector< double > NangaParbat::Parameterisation::GetParameters ( ) const

inlinevirtual

◆ HasGradient()

bool NangaParbat::Parameterisation::HasGradient ( ) const

inline

◆ LatexFormula()

virtual std::string NangaParbat::Parameterisation::LatexFormula ( ) const

inlinevirtual

Virtual function that returns a string with the formula of the non-perturbative function(s) in LaTex format.

Reimplemented in NangaParbat::DWS, NangaParbat::MAP21test, NangaParbat::MeanReplica, NangaParbat::PV17, NangaParbat::PV19, NangaParbat::PV19b, NangaParbat::PV19x, NangaParbat::PV20Sivers, NangaParbat::QGG13, and NangaParbat::QGG6.

◆ LHAPDF_Derivative()

virtual std::function< std::map< int, double >(double const &, double const &)> NangaParbat::Parameterisation::LHAPDF_Derivative ( int ) const

inlinevirtual

◆ LHAPDF_Function()

virtual std::function< std::map< int, double >(double const &, double const &)> NangaParbat::Parameterisation::LHAPDF_Function ( ) const

inlinevirtual

◆ SetParameters()

virtual void NangaParbat::Parameterisation::SetParameters ( std::vector< double > const & pars )

inlinevirtual

Function that sets the free parameters of the parameterisation.

Parameters

pars	the vector of parameters

Examples: PlotTMDs.cc, and RunFit.cc.

Member Data Documentation

◆ _anders

bool NangaParbat::Parameterisation::_anders

protected

Whether the parametersation provides analytic derivatives.

◆ _name

std::string NangaParbat::Parameterisation::_name

protected

Name of the parameterisation.

◆ _nfuncs

int NangaParbat::Parameterisation::_nfuncs

protected

Number of output functions.

◆ _pars

std::vector<double> NangaParbat::Parameterisation::_pars

protected

The vector of free parameters.

The documentation for this class was generated from the following file:

/Users/vb262523/Codes/NangaParbat-Beta/inc/NangaParbat/parameterisation.h
